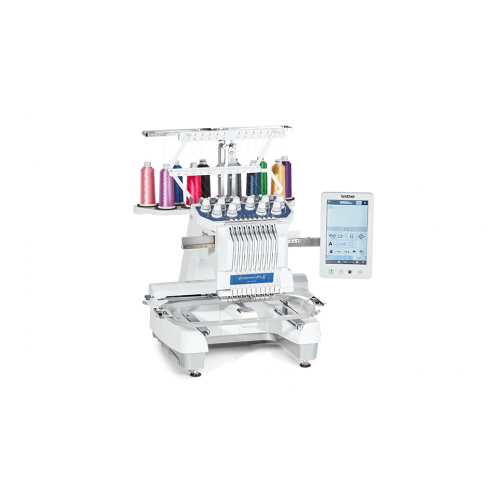

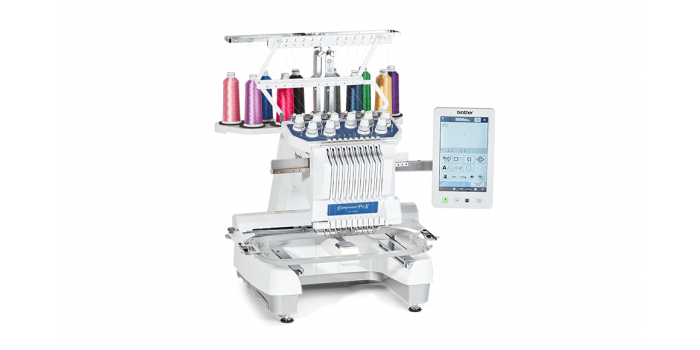

• Brother PR1055X Embroidery Machine
  • 10.1 " LCD touch screen
  • Extra-large embroidery area 200 x 360mm
  • Built-in camera sensor for easy embroidery positioning and on-screen embroidery preview
  • Automatic colour change, needle threader & thread trimmer
  • 1184 Built-in embroidery designs, including 37 fonts and monograms
  • Smart stitch management with progress bar and direct stitch entry to pinpoint the exact stitch
  • Variable speed up to 1000 stitches per minute
  • Wireless LAN connectivity - connect up to 10 machines with optional PE-Design 11 software
  • My Stitch Monitor mobile app
  • Wide range of frames available
  • Automatic needle threading
    Simply press the automatic needle threading button and the upper thread will pass through the needle. It couldn't be simpler.

    Adjustable LED lighting system
    The effective built-in LED natural lighting system provides adjustable brightness for a more comfortable work area.

    A total of 944 built-in designs
    Quickly and simply personalise your projects with a choice of alphabet designs, frame patterns or a selection of embroidery designs.

    Built-in monogram styles (3 lettering & 15 frames)

    Monogram designs can be created by combining two or three letters. Also monogram frames can be added.

    37 built-in fonts
    Customise all your projects with a range of lettering styles and text effects.

    Auto split quilting sash
    Create beautiful sashing and border patterns sized perfectly for your quilt, up to 118 x 118” (300 x 300mm)! Patterns are split automatically for your selected hoop.

    20 Quilting motifs and 5 two-colour quilting sash designs
    Choose from 20 different motifs. Expand your creative output by selecting from five two-colour quilting sash designs, which are perfect for creating eye-catching, colourful borders.

    26 Stippling and decorative fills
    Accurately add stippling or echo stitching to any embroidery design or quilt block, or save the outline, and then choose from 26 new built-in decorative fill patterns. With the embroidery preview mode that is now 40% wider than previous models, see the selected stippling or fill patterns before you begin to stitch.

    USB port and Wireless LAN connectivity
    Connect a USB device such as a USB flash drive or a card reader/writer. Or transfer your designs wirelessly via PE-Design 11 software.

    My Stitch Monitor mobile app
    With wireless LAN connectivity, keep track of your embroidery with the My Stitch Monitor mobile app on your iOS or Android ™ device. Follow the progress of your project and get alerts when it’s time to change threads or when your embroidery is finished.

    Flexible threading system
    Easy threading prevents thread tangles and knots and provides stable thread tension.

    Appliqué function
    Create appliqués with this useful built-in function, perfect for badges and medallions.

    Progress indication bar
    Always know the advancement of your project thanks to the visual indicator.

    Stitch simulator
    Preview how your design pattern will be stitched before starting.

    Colour sort function
    Minimise the number of thread changes when combining designs.

    Embroidery frames
     4 different size frames are supplied as standard:
    • Extra-large 200 x 360 mm
    • Large 130 x 180 mm
    • Medium 100 x 100 mm
    • Small 40 x 60 mm

    Large embroidery area (200 x 360 mm)
    The extra-large embroidery area and variety of included and optional frames gives you the flexibility to create a multitude of projects from jackets and t-shirts to socks and baby clothes.

    Letter input and positioning
    Input multiple lines of lettering and then go back and edit many different ways. You can insert elements, divide words or phrases, combine selected words, change the style and size of individual letters and even change font style of a whole line.

    Alignment of text
    Easily embroider multiple line poems, phrases and more. Also allows for left, center and right alignment of text.

    No Sew button
    Allows you to turn off colour sections of a design for even more creative options.

    Single colour embroidery
    Quickly and simply convert multi-coloured designs to single colour, saving you time.

    Customise designs on screen
    Powerful editing functions include arranging text, pattern rotation in 1-degree increments and design size change, plus the ability to combine designs and add lettering.

    Advanced features for extra versatility
    Camera sensor enables you to go up to 1,000 stitches backwards or forwards in a design.

    Position scanning
    Scan projects in the hoop and display them on the large screen, so you can easily position the design before you start to embroider. Ideal for positioning patterns on necklines or complex quilt squares. Patterns can be re-sized, edited and the angle adjusted as required to suit the garment or project.

    My Design Center
    Create your own embroidery designs quickly and easily! This powerful and unique feature enables you to create your own designs from clip art, image files or drawing directly on the large touch screen, or scanning line-art or illustrations printed on paper.

    Built-in camera system
    The built-in camera allows you to scan the entire embroidery area and ensures that your projects are perfect. Precisely place your design exactly where you want it every time. It also works on with the optional cap and cylinder frames.

    Snowman Embroidery Positioning Marker

    Pair with the built-in camera to automatically position the design for precise embroidery placement. Choose from 9 options for alignment of embroidery designs.

    Embroidery design connection via built-in camera
    Thanks to the clever built-in camera system, embroidery design connection is easy and more precise. Combined with the Snowman Embroidery Positioning Marker, you can reposition your design many times in many directions. Perfect for aligning designs for borders and quilt blocks.

    Live positioning of embroidery patterns
    Real-time viewing of fabric within the embroidery frame to help you place the design exactly where you want it.

    Camera positioning sensor
    Rotate and position the embroidery exactly where needed, thanks to the built-in camera.

    Thread change

    Always know when more thread is needed, thanks to this convenient display showing the length of time before the next thread change.

    Video tutorials and help guides

    View 29 on-screen video tutorials and several built-in help guides that recommend the perfect settings for your PR1055X.

    10.1" high-resolution IPS LCD touch screen

    Simply touch the large, clear wide-angle screen to:
    • Edit on-screen embroidery
    • Customise your settings
    • Select any of the 13 built-in languages
    • View clock and watch on-screen video tutorials
    • Read built-in help guides to find the ideal settings
    • Plus much more!

    Colour shuffling
    Choose new colour schemes for embroidery designs with enhanced functionality. Select from Random, Gradient, Vivid and Soft styles and a range of colour combinations displayed on screen. Personal preferences for starting colour can be programmed and complementary colour combinations will be generated based on your favourite colours.

    Cylinder arm
    Additional flexibility and ease to embroider difficult to-reach areas such as caps, tote bags and sleeves. Plus, it helps reduce fabric tangles!

    10 needles
    Embroider multi-coloured designs quickly and easily. Upper and lower thread trimmers eliminate time-consuming trimming when the embroidery is complete.

    Easy access to bobbin

    Save time while you embroider with the easy access bobbin. You can often change the bobbin without even needing to remove the frame.

    Table to support extra-large projects
    Includes a table to support large and heavy projects, such as blankets and jackets. Also supports the optional jumbo and border frames.

    Variable speed: 400 to 1,000 stitches per minute
    Select the best embroidery speed for your project or choose different speeds for individual needles to suit speciality threads.

    Link up to 10 machines via wireless LAN*
    Enhance productivity by linking up to 10 machines wirelessly through our PE-Design 11 software (*Additional purchase required). Send designs to multiple machines. Queue name changes with the new name drop feature. Ideal when making personalised items such as team shirts.

    Automatic frame determination
    Detect the attached frame and display its contents directly on the screen.

    Automatic thread trimmers
    Cuts upper and lower thread automatically at the end of each colour change on embroidery.

    Magnetic Sash Frame*
    Patent-pending Brother-exclusive Hoopnetic Magnetic Frame hoop and embroider thick materials with ease. Avoid fabric shifting and the need to rehoop the fabric when connecting designs or embroidering large areas. Just slide the fabric on the frame for the next area to be embroidered.
    *Additional purchase required (Call 0114 255 2822 for price)

    Flat Brim Cap Frame*
    Patent-pending Industry-First “Scratch-Free” Flat Brim Cap Frame – Embroider more types of hats than before with the easy-to-use “scratch-free” cap frame. You can stitch and industry leading 35% closer to the brim (6-10mm) depending on the cap.
    *Additional purchase required (Call 0114 255 2822 for price)

    Tubular Frame Table*
    Embroider easily on sleeves, trousers and other tubular items. Serves as an extra support for big fabrics. Easily attach and remove with no space between machine and table.
    *Additional purchase required (Call 0114 255 2822 for price)

    Accessories included:

    • Accessory case
    • Needle set x 2
    • Pre-wound bobbin x 6
    • Spool net x 10
    • Seam ripper
    • Scissors
    • Tweezers
    • Touch pen
    • Needle changing tool
    • Threader
    • Needle plate spacer
    • Phillips screwdriver
    • Standard screwdriver
    • Allen screwdriver
    • Offset screwdriver
    • Disc shaped screwdriver
    • Wrench (spanner) 13 x 10
    • Oiler
    • Cleaning brush
    • Weight
    • Usb cord clamp
    • Spool mat x 10
    • Spool cap x 10
    • USB cable
    • Embroidery frame (extra large) H 200mm x W 360mm H 7 7/8inches x W 14inches
    • Embroidery frame (large) H 130mm x W 180mm H 5 1/8 inches x W 7 1/8 inches
    • Embroidery frame (medium) H 100mm x W 100mm H 4inches x W 4inches
    • Embroidery frame (small) H 40mm x W 60mm H 1½ inch x W 2 3/8 inches
    • Embroidery sheet (extra large) H 200mm x W 360mm H 7-7/8inches x W 14 inches
    • Embroidery sheet (large) H 130mm x W 180mm H 5 1/8 inches x W 7 1/8 inches
    • Embroidery sheet (medium) H 100mm x W 100mm H 4inches x W 4inches
    • Embroidery sheet (small) H 40mm x W 60mm H 1½ inch x W 2 3/8 inches
    • Embroidery positioning sticker sheets
    • Embroidery frame holder A (With White Corner Cover)
    • Embroidery frame holder B (with light grey corner cover)
    • Operation manual
    • Quick reference guide
    • Wide table
    Machine net weight: 52KG
    Included accessories subject to change without notice.3

    Specification Details

    Machine Information

    Machine SizeNot Portable (Needs Wheels)
    Product TypeEmbroidery, Small Business Use
    Skill LevelExpert, Small Business Use

    General Features

    Bobbin TypeVertical
    Machine TypeElectronic
    Insertion of BobbinAnytime Access
    Lighting5 LEDs
    Number Of Needles10
    Accessory BoxYes
    Instructional Manual PDF ViewerYes


    USB PortPC and 2x High Speed USB Port
    My Stitch Monitor AppYes
    Wi-LAN FunctionYes


    Display Size10,1"
    Type of ScreenHigh-Resolution IPS LCD-Touchscreen

    Embroidery Features

    Embroidery Positioning FunctionLive camera positioning
    Built-In Lettering Styles (Embroidery)37
    Colour GroupingYes
    Colour ShufflingYes
    Creating a Custom Thread TableYes
    Deselect RegionYes
    Extension Wide TableYes
    Font Size Selection (L-M-S)Yes
    Free Arm EmbroideryYes
    High Speed AccelerationYes
    Jump Stitch TrimYes
    Max Embroidery Speed (Stitches per Minute)1000
    Multiple Line Text InputYes
    Number of Spool Stands10
    On Screen Video TutorialsYes
    Pattern - Size, Change Rotation & MirrorYes
    Realistic Preview of PatternsYes
    Single Colour Pattern ConverterYes
    Thread Colour SortingYes
    Built In Monogram Styles3 lettering & 15 frames
    Built-in Embroidery Frame Patterns140 (10 shapes x 14 stitch types)
    Built-In Patterns944
    Camera with Scan Function (Built-in Camera)Background Scanning, Image Scanning, Live Camera Positioning, Viewing needle drop point
    Converting scanned images to embroidery dataYes with My Design Center
    Embroidery Area in mm360 x 200 (360 x 360*) *optional purchase of Jumbo frame necessary
    Font Editing Functions/Multiple Lines and Alignment (L-C-R)L-C-R
    Frames Included200 x 360 mm (8 x 14”), 100 x 100 mm (4 x 4”), 40 x 60 mm (1.5 x 2.35”), 130 x 180 mm (5 x 7")
    High Speed Camera ScanningYes
    My Design CenterYes
    Number of Hoops (Standard Accessory)4
    Pin-point Stitch NumberYes
    Progress Indication BarYes
    Redo/Undo When Embroidery EditingYes


    Consumption Power116 W
    Eco Mode (Auto Power Off/Sleep Mode)Yes

    Warranty Information

    WarrantyBrother 3 year Warranty *Commercial use only 1 year warranty


    Automatic Thread CutterYes
    Bobbin WinderOptional
    Needle Threading SystemExtra Advanced
    Upper Thread SensorYes
    Adjustable Thread TensionManual
    Lower Thread SensorYes

    Weight and Measurements

    Machine Dimension (mm)587x561x782
    Weight (kg)42.5

    Download Brother's Business Guide here.

    Overview -

    Built-in Designs & My Stitch Monitor App

    Built-in Tutorial Videos

    My Design Centre

    Auto Split Quilting Sash

    Tubular Frame Table PRTT1 - Purchase here!

    Flat Brim Cap Frame Attachment - Purchase full kit here!

    Purchase spare cap frame only here!

    Let's get down to business. Or are you ready to crush your creative goals? Meet the Entrepreneur PR1055X - perfect for business and hobby alike. The PR1055X is a creative powerhouse that's also an incredible workhorse.

    Business or Hobby? Whichever your side, the PR1055X ten needle embroidery machine is packed with features to take your embroidery to the next level.

    The PR1055X handles larger garments such as jacket backs and quilts with ease. Its large embroidery area and range of frames make embroidery possible on almost any garment or textile. That said, it also embroiders smaller and delicate items - the PR1055X is a very versatile embroidery machine!

    For creative embroiderers, the 10 needles give you the flexibility to embroider multi-coloured designs fast and easily. The library of built-in designs will keep those creative juices flowing. More fonts, more editing features and more technology that will take your projects to places you've only dreamt of. Use the built-in camera to scan projects in the hoop, connecting borders or placing embroidery designs exactly where you want. Or create your designs on-screen with My Design Center by drawing directly onto the LCD screen and add stippling and decorative fills with the press of a button.

    Or let's get down to business! The PR1055X is a creative powerhouse that`s an incredible workhorse too. Time is money - so these features make it easy to get right down to business with 10-needle speed, auto-threading and colour sorting. There's no downtime with an important notification system, so you can be super productive. Plus, there are optional features like a Flat Brim Cap Frame to expand your product line. With wireless LAN connectivity and optional PE-Design 11 software, you can connect up to 10 machines and grow your home business into a full-fledged business operation.

    It's not all business, because let's face it - this all started with your creative side. And this machine is made to create!

    • NOW AVAILABLE - Up to 24 Months interest free credit, to apply call 01142552822

    Call 0114 255 2822 For Finance -Option 2

    Our Price Promise - We have a price match guarantee on all Brother Home Sewing and Home Embroidery Machines
    FREE DELIVERY, FINANCE AVAILABLE (subject to status)
    To Apply For Online Finance Add to Cart and Select Novuna Finance at Checkout

    Finance Option Brother

    Write a review

    Please login or register to review

    Brother PR1055X Embroidery Machine

    • Brand: Brother
    • Product Code: Brother PR1055X Embroidery Machine
    • Availability: 2
    • £9,999.00

    Related Products

    Brother PE Design Plus 2 Software

    Brother PE Design Plus 2 Software



    Versatile Magnetic Frame 100 x 100 mm (4 x 4") PRVMFM

    Versatile Magnetic Frame 100 x 100 mm (4 x 4") PRVMFM

    Versatile Magnetic Frame 100 x 100mm (4 x 4") PRVMFMBoost productivity with Brother’s easy-to-use Ma..

    £249.99 £264.99

    PR versatile magnetic frame kit 100 x 100 mm (4 x 4") PRVMFMKIT

    PR versatile magnetic frame kit 100 x 100 mm (4 x 4") PRVMFMKIT

    PR versatile magnetic frame kit 100 x 100 mm (4 x 4") PRVMFMKITBoost productivity with Brother’s eas..

    £309.00 £317.00

    PR versatile magnetic frame 130 x 180 mm (5 x 7") (frame only) PRVMFL

    PR versatile magnetic frame 130 x 180 mm (5 x 7") (frame only) PRVMFL

    PR versatile magnetic frame 130 x 180 mm (5 x 7") (frame only) PRVMFLBoost productivity with Brother..

    £309.00 £317.00

    PR versatile magnetic frame kit 130 x 180 mm PRVMFLKIT

    PR versatile magnetic frame kit 130 x 180 mm PRVMFLKIT

    PR versatile magnetic frame kit 130 x 180 mm PRVMFLKITBoost productivity with Brother’s easy-to-use ..

    £349.99 £370.99



    Stand VRPRNSTD for Brother PR-Series and VROur metal stand, designed exclusively for the PR and VR S..

    £399.00 £419.00

    Brother PRHSL200 Sleeve Frame 70x200mm

    Brother PRHSL200 Sleeve Frame 70x200mm

    The 70 x 200mm frame is the perfect size for embroidering difficult to access areas such as jacket s..


    Brother Cap Frame PRCF3

    Brother Cap Frame PRCF3

    Please allow 2-3 working days for delivery. Key Features Includes driver, mounting Jig and..


    Brother Cap Frame PRCF5 (Frame Only)

    Brother Cap Frame PRCF5 (Frame Only)

    Key FeaturesCap frame onlyNeed Flat Brim Cap Frame kit PRCF5 (additional purchase necessary)Compatib..


    Brother Cap Frame PRPCF1

    Brother Cap Frame PRPCF1

    Key FeaturesIncludes 60mm x 360mm wide cap frame, cap frame driver, and mounting jigTotal embroidery..


    Brother Cap Frame PRPCFH4

    Brother Cap Frame PRPCFH4

    Key FeaturesImportant: This accessory includes the frame ONLY. If you don’t have the cap frame drive..


    Brother Cylinder Frame and Driver Set PRCL1

    Brother Cylinder Frame and Driver Set PRCL1

    Key FeaturesIncludes driver, mounting Jig and cap frameThis cap frame embroidery area is 130mm x 60m..


    Brother PR Apparel Kit PRAPPRLKIT1

    Brother PR Apparel Kit PRAPPRLKIT1

    Brother PR Apparel Kit PRAPPRLKIT1*Please allow 2 - 5 working days for deliverySpread your stamp acr..


    Brother PR Sports Kit PRSPRTKIT1

    Brother PR Sports Kit PRSPRTKIT1

    Brother PR Sports Kit PRSPRTKIT1*Please allow 2 - 5 working days for deliverySpread your stamp acros..


    Brother PR Monogram Kit PRMNGRMKIT1

    Brother PR Monogram Kit PRMNGRMKIT1

    Brother PR Monogram Kit PRMNGRMKIT1*Please allow 2 - 5 working days for deliveryAdd the personal tou..


    Brother PR Consumables Kit PRCNSKIT1

    Brother PR Consumables Kit PRCNSKIT1

    Brother PR Consumables Kit PRCNSKIT1*Please allow 2 - 5 working days for deliveryEverything you need..


    Brother Cap Frame PRCF5

    Brother Cap Frame PRCF5

    Key FeaturesEmbroidery area 130 x 60mmEasy and effortless cap framingEnables embroidery closer to th..


    100 x 100mm Clamp Frame Set PRCLP100B

    100 x 100mm Clamp Frame Set PRCLP100B

    100 x 100mm Clamp Frame Set PRCLP100BThe click and snap design allows you to hoop your project easil..

    £225.00 £249.99

    Brother Tubular Frame Table PRTT1

    Brother Tubular Frame Table PRTT1

    Out of stock until early June 2024. Tubular Frame TableIncludes: One Tubular Frame Table, easy ..

    £235.99 £238.99

    Brother VR/PR Needle Threader

    Brother VR/PR Needle Threader

    Brother VR/PR Needle ThreaderXC5732051Needle threader for Brother VR and PR Range Embroidery Machine..


    Tags: Brother PR1055X Embroidery Machine
